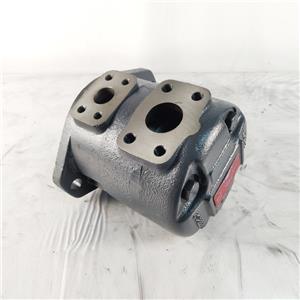

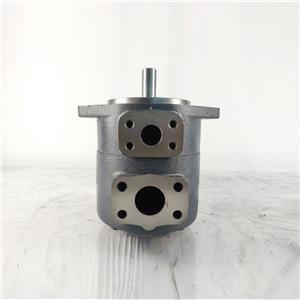

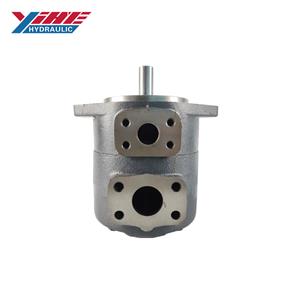

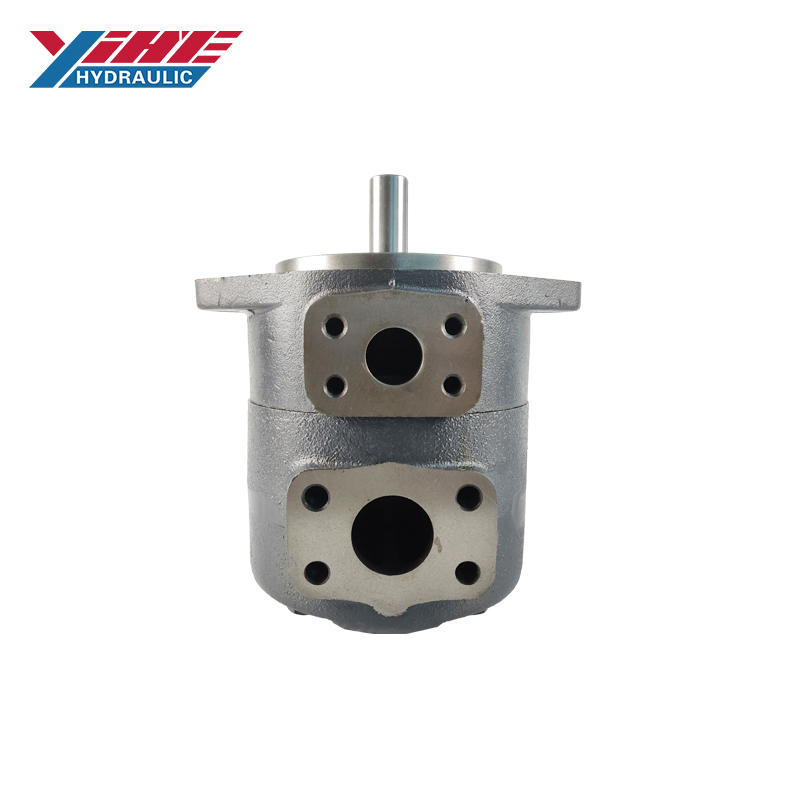

ANSON Type IVP2-21AM-F-R-86B-10 Hydraulic System Single Vane Pump
Brand: YiHe
Product origin: China
Delivery time: 10-30day
Supply capacity: 300 Pcs/Day
Model: IVP2-21AM-F-R-86B-10
Max Displacement: 65 ml/rev
Max Working Pressure: 17.2 Mpa
Shaft Speed Range: 600-1800 r/min
Rotation: Right and Left From Shaft End
Control Type: DOSING PUMP
Product Type: Vane Pump
Product detail presentation
High-strength pump core, arc blades are highly practical
Efficient operation, energy saving and low noise
Prevent oil leakage Precise and durable
Product details
| ( F3- ) | IVP (Q / V ) 2 | -17 | H | A | M | -F | -R | -86 | C | -10 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Prefix, Fluid Compatibility | Frame Size | Geometric Displacement ●Code | ★Pressure type | Port connections | Port connections modifier | Mounting Form | Shaft Rotation | ▲Shaft model | Outlet Positions | Design | ||
| Str. key | HD Str.key | Splined key | ||||||||||
| Omit: Using Petroleum Base oil & anti-wear hydraulic oil F11- Using water glycol fluid. F3- Using water-in-oil emulsions or phosphate ester fluid. | IVP (Q/V) 1 | 2,3,4,5,6,7,8, 10,11,12,14 | Viewed from shaft end of pump | 1 | N/A | 151 | Viewed from cover end of pump A- Opposite inlet port B- 90° CCW from inlet C- Inline with inlet D- 90° CW from inlet | 10 | ||||
| IVP (Q/V) 2 | 10,12,14,15, 17,19,21,25 | Omit – Standard pressure | A- SAE 4 bolt flange | M- Metric fixing threads | F- Flange mounting | R- Right hand for clockwise | 1 | 86 | 11 | |||
| IVP (Q/V) 3 | 17,21,25,30, 32,35,38,42 | H- High pressure | Omit- Inch fixing threads | L- Foot mounting | L- Left hand for counterclockwise | 1 | 86 | 11 | ||||
| IVP (Q/V) 4 | 30,35,38,42, 50,60,67,75 | 1 | 86 | 11 | ||||||||
| Maximum working pressure of IVP (Q/V) single pump | |||||||||
| case number | code | Geometric displacement (m³/r） | IVP(Q/V) | F11-IVP(Q/V） | F3-IVP(Q/V） | Minimum number of revolutions （r/min) | |||
| Use anti-wear hydraulic fluid or phosphate ester | Use water glycol solution | Use a water-in-oil emulsion | |||||||
| maximum operating pressure （bar） | Maximum number of revolutions （r/min) | maximum operating pressure （bar） | Maximum number of revolutions （r/min) | maximum operating pressure （bar） | Maximum number of revolutions （r/min) | ||||
| IVP（Q/V)2 | 10 | 32.5 | 172 | 1800 | 157 | 1500 | 138 | 1200 | 600 |
| 12 | 38.3 | ||||||||
| 14 | 43.3 | ||||||||
| 15 | 46.7 | ||||||||
| 17 | 52.5 | ||||||||
| 19 | 59.2 | ||||||||
| 21 | 65.0 | ||||||||
| 25 | 78.6 | 138 | 138 | ||||||
High quality steel forging, pressure resistance and impact resistance
Instructions for use
To protect your rights please read the following carefully
Pump Start-up Procedure
Preparation Prior to Start-up
The reservoir and circuit should be clean and free of dirt and debris prior to filling with fluid.
Circuit Cleanup
The reservoir should be charged with filtered hydraulic fluid. The fluid level should be sufficient to prevent vortexing at the suction connection to the pump inlet. It is good practice to clean the system by flushing and filtering, using an external slave pump.
Filling Pump and Removing Air
If the pump is mounted above the fluid level, it should be filled with fluid through the outlet port. If the pump is mounted below the fluid level, the pump outlet fitting (or other downstream fitting or plug) can be loosened to allow fluid to displace the air. It may be necessary to loosen the fill cap on the reservoir to allow the fluid to flow freely. When a solid stream of fluid with no observed air begins to drain through the loosened fitting, the fitting should be retightened. An air bleed valve in the outlet circuit is also recommended to remove trapped air. If such a device is used, the pump should be filled with fluid before start-up. In some cases, it may be possible to prime the pump by running the engine starter for five to ten seconds with the throttle and/or ignition switch in the "off" position. It will be necessary to loosen a fitting or plug in the pump outlet to allow air to escape.
Pump Start-up
All controls should be placed in the neutral position so the pump is unloaded when started. Start the engine and run at low idle. Once the pump is started, it should prime and pump within a few seconds. If it does not, make sure there are no restrictions between the reservoir and the inlet to the pump, and that there are no air leaks in the inlet line and connections. Also, make sure that trapped air can escape from the outlet. Run at low engine idle for approximately five minutes. Then, while observing the reservoir fluid level, operate the implements. Extend all actuators to maximum safe limits to completely fill the system with fluid. Do not run with the fluid level below the "low" limit. Add fluid to the reservoir to bring the fluid to the proper fill level.
