First pump (shaft side) displacement mark: 17/21/25/30/32/35/38
Second pump (middle) displacement mark: 10/12/14/15
Third pump (pump cover side) displacement mark: 2/3/4/5/6/7/8/9/11
Displacement: 132.3-269 ml/rev
Speed range: 600-1200

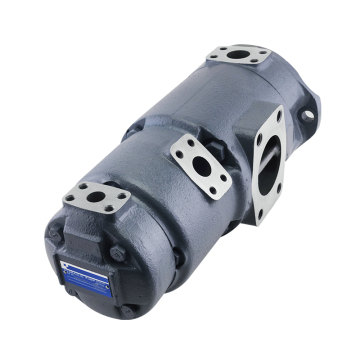

Type: triple vane pump
Maximum working pressure: 17.5 MPa
Weight: 65 kg
Application: injection molding machinery, hydraulic machinery, engineering machinery, construction machinery, machine tool machinery, marine machinery, mining machinery
Second pump (middle) displacement mark: 10/12/14/15
Third pump (pump cover side) displacement mark: 2/3/4/5/6/7/8/9/11
Displacement: 132.3-269 ml/rev
Speed range: 600-1200
Type: triple vane pump
Maximum working pressure: 17.5 MPa
Weight: 65 kg
Application: injection molding machinery, hydraulic machinery, engineering machinery, construction machinery, machine tool machinery, marine machinery, mining machinery
Model: SQP41-50-8-1AA-18
Max Displacement: 165 ml/rev 26.2 ml/rev
Max Working Pressure: 17.2 Mpa 20.7Mpa
Shaft Speed Range: 600-1800 r/min
Rotation: Right and Left From Shaft End
Control Type: DOSING PUMP
Product Type: Vane Pump
Max Displacement: 165 ml/rev 26.2 ml/rev
Max Working Pressure: 17.2 Mpa 20.7Mpa
Shaft Speed Range: 600-1800 r/min
Rotation: Right and Left From Shaft End
Control Type: DOSING PUMP
Product Type: Vane Pump
