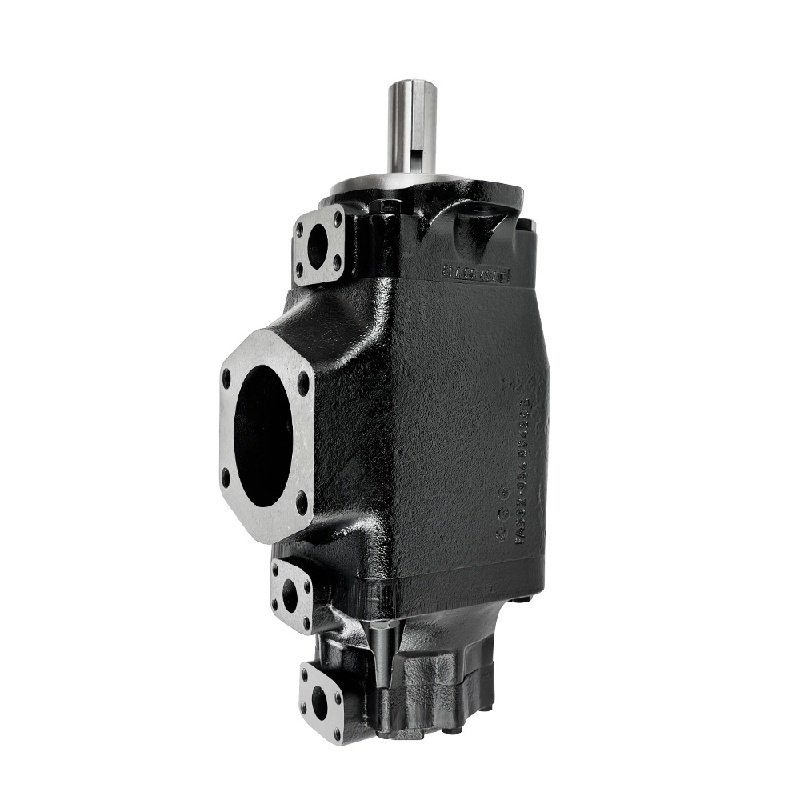

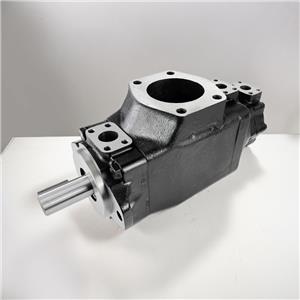

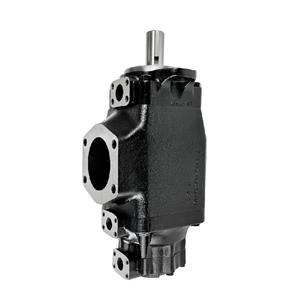

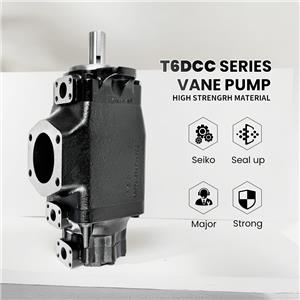

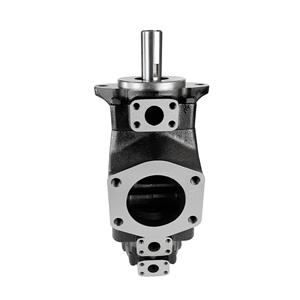

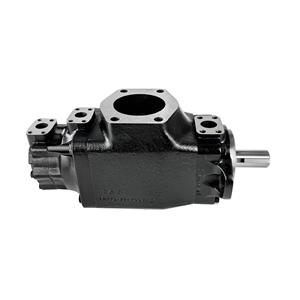

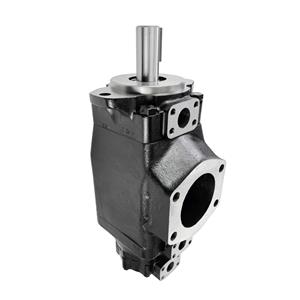

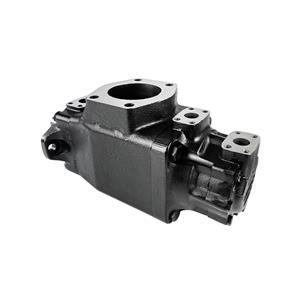

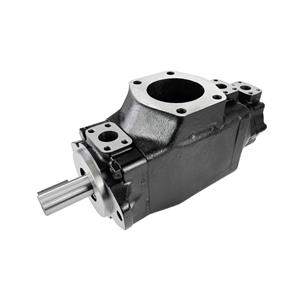

Product Details

Features:

High working pressure-The rated working pressure is up to 275 bar, which can reduce the size of hydraulic actuators, hydraulic control valves and piping, thereby reducing installation costs. If the working pressure is reduced, the working life can be extended; high volumetric efficiency - the typical volumetric efficiency is 0.94, which has a high volumetric efficiency even under loading, thereby improving productivity, reducing heat and reducing the operating cost of hydraulic equipment, and allowing the speed to be as low as 600 rpm under full pressure conditions (vehicle pumps can be as low as 400rpm);

High mechanical efficiency-The typical value is 0.94, which reduces energy loss; wide speed range - the speed range is 600~2800 rpm (vehicle pumps are 400~2800 rpm), combined with the method of installing a large-displacement pump core component in a small-size housing, it can optimize the working state and reduce noise;

Low speed-(600 rpm, 400 rpm for vehicle pumps), low pressure and high viscosity (860 cSt, 2000 cSt for vehicle pumps) operating ability - enables the T6 series vane pumps to adapt to low temperature conditions, with low power consumption and no risk of jamming; small pressure pulsation - about ±2 bar, which can reduce the noise of hydraulic pipelines and extend the service life of other components in the hydraulic circuit;

Low noise-Improves work safety and increases acceptance. Strong anti-pollution ability - This series of pumps uses double-lip structure blades, which have excellent anti-pollution ability and long service life;

Rich structural parameters and forms-Such as: pump core displacement, drive shaft form, oil port configuration form, etc., which are convenient for users to choose according to installation needs;

Diversity of installation forms-There are 32 installation combinations for double pumps, and up to 128 installation combinations for triple pumps, which can reduce costs and improve performance.

Wide applicability-    The installation method complies with the 2-hole flange form specified by SAE J744a and ISO 3019-1, and is equipped with various flat key and spline drive shafts for selection. For vehicle-type pumps, there is also a T-type drive shaft (compliant with SAE J718c) option, which allows direct installation with tractors (speed 540~1000 rpm);

Company Profile

01. Factory direct price

02. Brand new product, better quality

03. Fast delivery within 2 days

04. Accept OEM

05. Customized products

06. No minimum order quantity, 1 piece is enough. Small orders are welcome

07. Support online payment or other payment methods

08. 24-hour after-sales service

09. Two major production plants

10. Export to 150 countries

Guangzhou Yisheng Machinery Equipment

We are Guangzhou Yisheng Machinery Equipment Co.,Ltd., which located in Foshan City, Guangdong Province, China. We have R&D department with about 5-10 engineers and designers. Our factory have over 100 skilled employees, our production facility have many advanced manufacturing equipments and testing equipments, such as numerical control lathe, the processing center, CNC milling machine, special CNC grinding machine, double grinding machine, automatic 3D measuring instrument, etc..

Our main products are hydraulic variable displacement vane pump, double pump, HVP high pressure variable displacement vane pump, PV2R1 & PV2R2 series,V&VQ series,T6&T7 series, SQP series and VQ series of fixed displacement vane pump and electrical motors for hydraulic application.

Our products are widely used for industrial machinery, NC lathe machine, shoe machinery, wood working machines, plastic machines, construction machines and various hydraulic system machinery. We also able to supply the customized products and services as per your spec. ,we are looking forward to cooperating with your company sincerely.

1.Frequent Visitor To International Hydraulic Exhibitions

Our company participates in major international hydraulic exhibitions every year and communicates with customers in the hydraulic industry

2. Perfect Service

Professional customer service staff, each of whom has more than five years of hydraulic experience, provide one-on-one service and

provide you with hydraulic solutions.

3.Quality assurance, 100% brand new products

We guarantee that all products are brand new. We will not sell second-hand refurbished products, nor will we sell inferior products. Because we are a professional factory, we have sufficient spot inventory, which can greatly shorten the delivery time.

FAQ

Q: Are you trading company or manufacture?

A: We are factory

Q: How long is your delivery time?

A: Gernally it is 1-2days if the goods are in stock.It is 5-7days if the goods no stock.It is subject to order quantity.

Q: Do you provide sample,Is it free or extra?

A: We are willing to provide samples to test quality first, it is not for free because it is high value products. But sample cost can return in bulk order.

Q: What is the terms of payment?

A: 100% deposit or 30% deposit, 70% before shippment.

Q: How long is the warranty?

A: We offer 12 months warranty.
